Cable Fault Locator

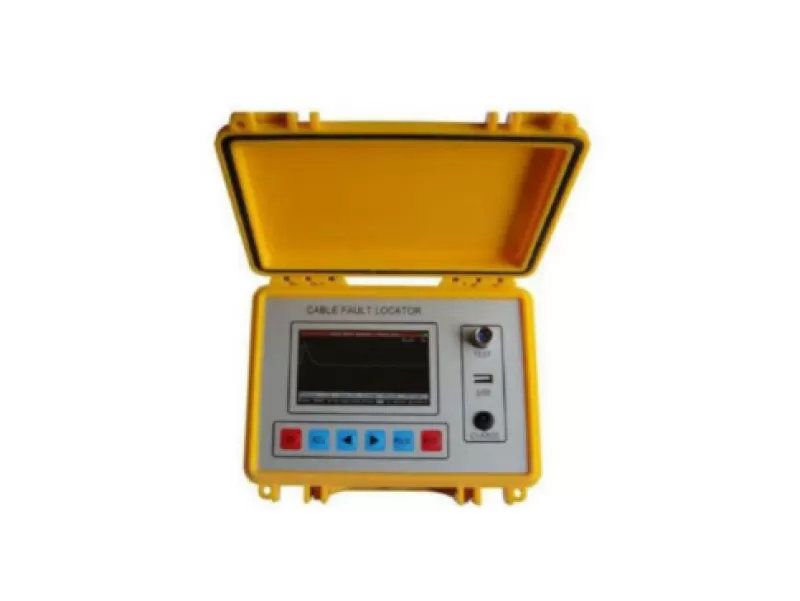

Take Control of Your Cables - Venus 120 TDR Cable Fault Locator

The cable fault locator is engineered for user-friendly operation, integrating both Time Domain Reflectometry (TDR) and intelligent bridge testing methodologies. This dual-approach system precisely identifies fault locations, including breaks, cross faults, grounding issues, insulation failures, and contact faults in both lead-covered and plastic cables.

The device is capable of testing virtually all types of telecom cables. Users can easily select the desired test modes. Parameters such as Distance, VOP (Velocity of Propagation), Gain, and Range are automatically calibrated and adjusted during the cable scan. Simply move the cursor to accurately pinpoint the fault location.

This tool significantly streamlines troubleshooting, enhances operational efficiency, and reduces the workload for line maintenance personnel. Additionally, it is invaluable for line project acceptance and the inspection of electrical cables.

Say Goodbye to Cable Fault Nightmares - Key Features

Technical Specifications and Features -

• High-Resolution LCD Display - Featuring a 480 x 280 dot large color LCD, the device offers an intuitive user interface with six function keys for streamlined operation.
• Advanced Testing Capabilities - Supports both Time Domain Reflectometry (TDR) and Intelligent Bridge Testing (Bridge), enabling the detection of broken lines, cross-faults, poor insulation, and various other faults.
• Manual Testing Functionality - Retains manual testing capabilities for versatile application.
• User-Friendly Interface - The full English menu system ensures ease of use and quick mastery.
• Comprehensive Resistance Testing - Equipped with a Megameter and Ohmmeter to measure insulation resistance and loop resistance effectively.
• Data Management - Features a USB port for seamless data transfer to a computer.
• Power Supply - Includes a rechargeable lithium battery with intelligent, unattended charging capabilities.
• Portable Design - Compact, lightweight, and easy to transport for field use.

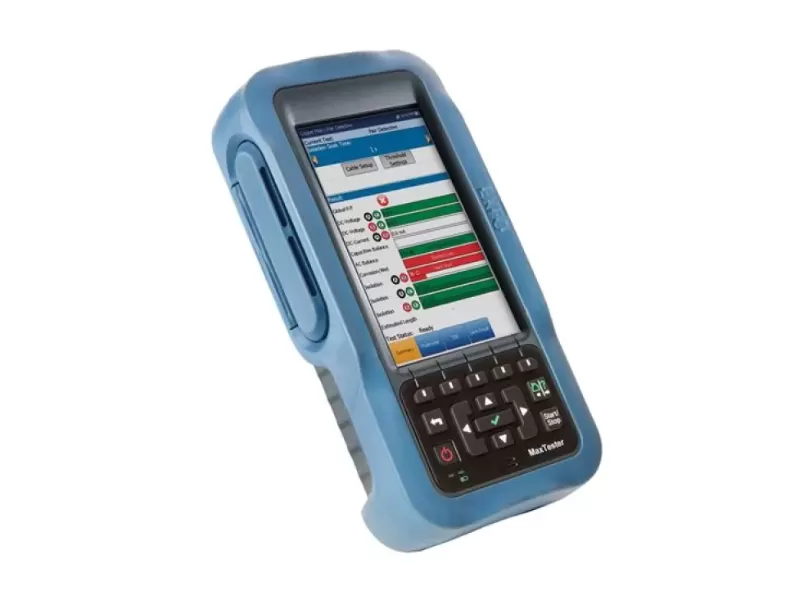

The User-Friendly Cable Fault Locator – Max Tester 610 Copper Test Set

The MaxTester 610 (MAX-610) is engineered for the installation and maintenance (I&M) of voice and DSL circuits. Its compact design, robust construction, and intuitive interface make it the perfect tool for outside plant (OSP) I&M technicians. The MAX-610 automates the testing process, allowing technicians to complete their tasks swiftly and effectively.

The MAX-610 empowers technicians and engineers to enhance operational efficiency. Equipped with SmartR, a comprehensive suite of intelligent and automated diagnostics, it enables swift and accurate assessment of line conditions. This advanced tool facilitates the rapid identification and localization of various common circuit faults, streamlining maintenance and troubleshooting processes.

Key Features –

• Integrates seamlessly with established protocols; conduct single-ended tests or employ far-end device (FED) testing to streamline repair time and reduce costs.
• Comprehensive suite of digital multimeter diagnostics enables rapid and precise assessment of network electrical integrity.
• Optional TDR and RFL/K-test features empower service providers to customize the product for current or evolving operational protocols.
• SmartR™ technology facilitates swift and accurate evaluation of physical copper circuit quality, fault localization, and high-voltage balance testing on inactive pairs.
• Engineered to withstand the rigors of the outside plant environment, boasting an IEC IP54 rating.
• Configurable pass/fail criteria for automated closeout testing, with effortless cloud-based results upload.
