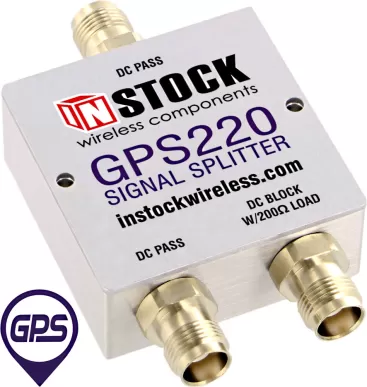

GPS 220 is a two way passive GPS signal splitter designed for sharing a single GPS antenna signal between two different receivers. It allows one receiver to supply DC power to a remotely located active GPS antenna while preventing DC power from passing through the other receiver. The unit is built for reliable operation and ensures proper isolation of connected equipment. All ports come equipped with TNC female connectors for secure and reliable connections.

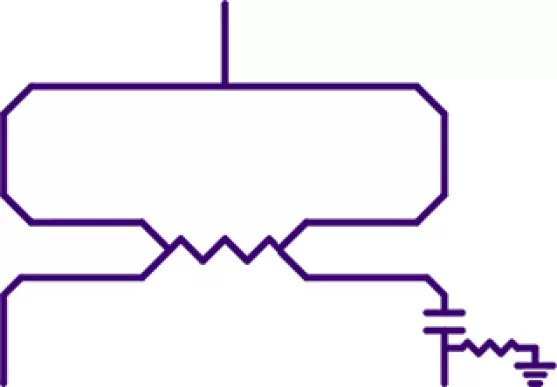

A key feature of this unit is the 200 ohm internal load that supplies a current drain for the GPS receiver not powering the active antenna. Certain GPS receivers may incorrectly detect an antenna fault when no current is drawn. The 200 ohm load simulates antenna current and prevents false fault indications. The maximum voltage rating at the DC blocked port is 15 VDC with a current limit of 75 mA. The DC pass port allows a maximum current of 2000 mA with a supported voltage limit of 50 VDC. This design ensures reliable operation and protects connected GPS equipment.
GPS L1 - L5, GLONASS, Galileo splitter
Low Insertion Loss (0.2 dB avg)
High Port-to-Port Isolation (30 dB avg)
Excellent VSWR (1.10 : 1 avg)
DC block port supports 15 VDC and 75 mA max.

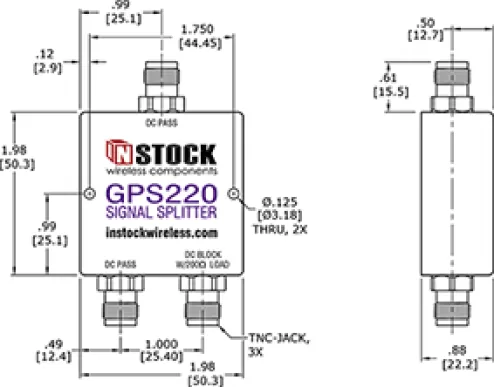

Tri Alloy TNC Female (Jack) 50 Ohms
