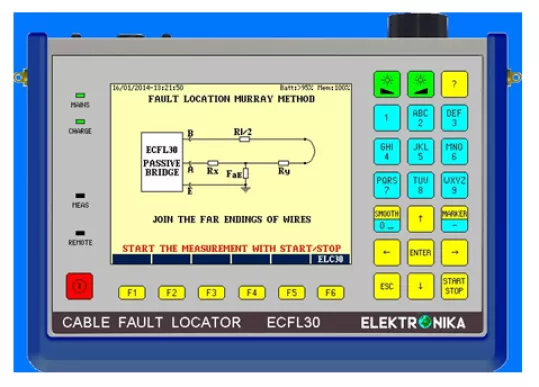

ECFL30: Advanced Cable Fault Locator for Telecom

The ECFL30 Cable Fault Locator brings multiple advanced fault detection technologies into a single portable unit. Equipped with active and passive bridge measurement modes, it can detect both minor and severe cable faults. Its Graaf method ensures accurate fault location in water‑damaged or deteriorated cables, while the built-in TDR pinpoints breaks, low-impedance faults, and crosstalk up to 32 km. With automatic test sequences, clear visual feedback on a color display, and USB connectivity for easy data transfer, this tool is perfect for telecom engineers and field technicians who need reliable, fast, and precise fault detection

Key Features

Multi-Tool in OneCombines Active/Passive Bridge, Graaf, and TDR methods for versatile fault detection.

Precise Fault DetectionTDR and bridge modes locate breaks, low-impedance faults, and splits up to 32 km.

Graaf Fault MethodIdeal for water-damaged or deteriorated cables.

Automatic & Manual ModesQuick automatic testing plus advanced manual methods for complex diagnostics.

Comprehensive MeasurementsLoop resistance, insulation, capacitance, and capacitive balance.

Clear Display & USB SupportColor LCD for easy reading; USB port for data transfer.

Remote Testing OptionsSupports end-to-end testing with optional remote units.

Reliable & PortableHandheld design for field use with rugged construction.

Applications

Telecom Cable Troubleshooting: Quickly locate faults on telephone and network cables.

Network Maintenance & Commissioning: Perform routine checks, quality tests, and diagnostics.

Long-Distance Cable Fault Location: TDR supports cable runs up to 32 km.

Water-Damaged Cable Testing: Graaf method locates faults even in wet or degraded lines.

Detailed Fault Mapping: Automatic and manual methods allow accurate fault pinpointing.

Data Management: USB connectivity enables easy reporting and record-keeping.
