PTP Timing Aware Switch with Integrated GM

A PTP Timing Aware Switch is a network switch built to support IEEE 1588 Precision Time Protocol (PTP) for high-accuracy time synchronization across packet-based networks — and when it ships with an integrated Grandmaster (GM), it can act as both the timing source and the timing transport in a single box.

What Is a PTP Timing Aware Switch?

A PTP Timing Aware Switch is a specialized Ethernet switch that keeps every connected device on the same clock — down to the nanosecond — in networks where timing errors translate directly into service problems: 5G fronthaul, industrial automation, and smart grid communications are the three biggest use cases.

Unlike a standard switch, which simply forwards PTP packets like any other traffic, a timing-aware switch actively participates in the PTP protocol. It timestamps PTP messages in hardware as they arrive and leave, corrects for the time it spent sitting in a queue, and passes a cleaner timing signal downstream than it received. That's what keeps synchronization error from compounding hop after hop across a network.

Key Features

• IEEE 1588v2 Support: Full compliance with the PTP standard, including both Transparent Clock (TC) and Boundary Clock (BC) operation.
• Master and Slave Clock Flexibility: Can run as an Ordinary Clock (OC) in either master or slave mode, so it fits multiple positions in a timing hierarchy, not just one.
• Dual Delay Mechanisms: Supports both End-to-End (E2E) and Peer-to-Peer (P2P) delay measurement for accurate path-delay correction.
• Flexible Packet Handling: Filters PTP packets, supports both one-step and two-step clock operation, and transports PTP messages over Layer 2 Ethernet or IPv4.
• Wire-Speed Performance: Non-blocking switching, jumbo frame support up to 9000 bytes, and full-duplex flow control keep packet loss and latency to a minimum even under load.



Transparent Clock vs. Boundary Clock — What's the Difference?

Both TC and BC exist to stop timing error from building up across multiple switch hops, but they solve it differently:

• Transparent Clock: Doesn't generate its own timing — it measures how long a PTP packet spent inside the switch and adds that residence time into the packet itself, so the endpoint can correct for it.
• Boundary Clock: Terminates PTP on one port, generates a fresh, corrected timing signal, and redistributes it on other ports — effectively resetting accumulated error at each hop.

A PTP Timing Aware Switch that supports both gives network architects the flexibility to choose the right mode per deployment, rather than being locked into one topology.



Applications

5G Fronthaul and O-RAN

Fronthaul networks connecting Radio Units (RUs) to Distributed Units (DUs) run on some of the tightest timing budgets in networking — industry specifications such as ITU-T G.8271.1 and G.8275.1 define per-node time-error budgets in the tens of nanoseconds to keep the overall radio-interface requirement (commonly cited around ±1.5 microseconds end-to-end) intact across multiple hops. A PTP Timing Aware Switch with an integrated Grandmaster gives O-RAN deployments both the timing source and the transport in one device, simplifying what would otherwise require a separate GM appliance.

Industrial Automation and Smart Grids

Distributed measurement systems, protection relays, and automation controllers depend on a common time base to correlate events across a plant or substation. PTP-aware switching keeps these systems synchronized even as the network scales.



Telecom and Enterprise Networks

Carrier-grade services need low-latency, high-capacity transport that doesn't sacrifice timing precision — timing-aware switches deliver both in the same platform.

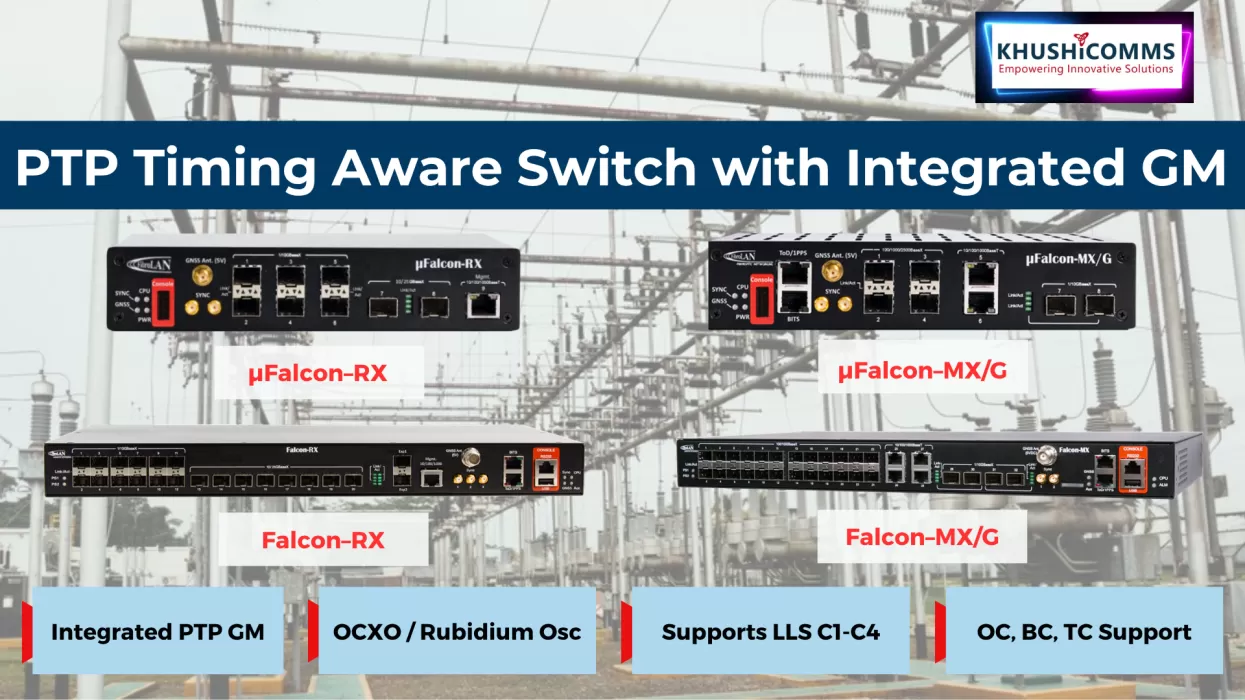

Product Lineup

Product	Positioning	Best Fit
Falcon-RX	5G xHaul Timing Aware O-RAN Switch & PTP Grandmaster	Fronthaul sites needing combined GM + transport
Falcon-MX/G	Carrier-grade 10 Gigabit aggregation/demarcation switch with advanced sync	Aggregation layer, multi-site carrier networks
µFalcon-MX/G	10G Edge Grandmaster Clock	Compact edge sites needing a standalone GM
µFalcon-RX	Compact edge xHaul PTP switch & clock	Space-constrained edge/small-cell deployments
xFalcon-LRX	Outdoor Edge PTP Grandmaster	Outdoor/cabinet deployments requiring ruggedized GM

Benefits

• High-Precision Synchronization: Maintains frequency, phase, and time-of-day (ToD) accuracy across the network.
• Reduced Latency and Jitter: Actively compensates for packet delay variation instead of just forwarding it downstream.
• Flexible Deployment: Operates in hybrid networks alongside PTP-aware and PTP-unaware equipment, so it fits into existing infrastructure rather than requiring a forklift upgrade.



FAQs

What's the difference between a Transparent Clock and a Boundary Clock?

A Transparent Clock measures and corrects for its own residence time without generating new timing; a Boundary Clock terminates and regenerates the timing signal at each hop.

How accurate does PTP need to be for 5G fronthaul?

Requirements vary by architecture and functional split, but standards like ITU-T G.8271.1/G.8275.1 typically call for per-node time errors in the tens of nanoseconds so the overall radio-interface budget is preserved.

Can a PTP Timing Aware Switch replace a separate GNSS Grandmaster?

Yes — models with an integrated GM combine the timing source and transport in one device, reducing the need for a standalone Grandmaster appliance.

What's the difference between one-step and two-step PTP?

One-step embeds the timestamp directly in the outgoing Sync message; two-step sends the timestamp in a separate Follow_Up message. Both are supported on these switches.

Does a PTP Timing Aware Switch work over both Ethernet and IP networks?

Yes — PTP messages can be transported over Layer 2 Ethernet or IPv4, depending on network design.

Talk to an Expert

Looking for the right PTP Timing Aware Switch for your network? Contact our team for a configuration recommendation or request a datasheet for detailed specifications on the Falcon series.
