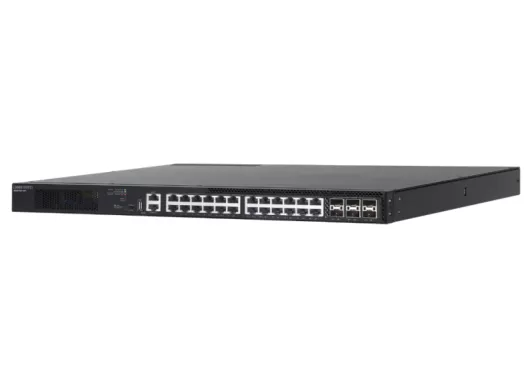

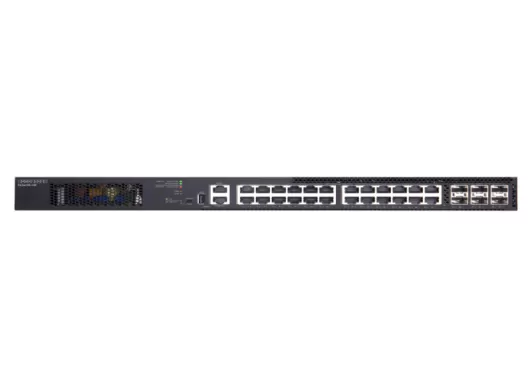

ECS4155-30P switch is a versatile 1G/2.5G multi-Gigabit Ethernet access/aggregation switch designed to meet the needs of Internet Service Providers (ISPs) and Multiple System Operators (MSOs). With six 1G/10G/25G SFP28 uplinks, the device provides high-speed connectivity for a range of applications.
The switch is ideal for delivering third-party services to home users with a maximum bandwidth of 2.5 Gigabits per second (Gbps) to end devices, making it well-suited for cloud-edge access and connecting IoT and other devices in Enterprises and SMB deployments. Additionally, the ECS4155-30P variant offers Power-over-Ethernet (PoE) capabilities, delivering up to 90 Watts to power devices such as wireless access points, VoIP phones, surveillance cameras, POS, and IoT devices over Cat 5e UTP cable. Packed with advanced features for high availability, security, multicast control, and QoS, the ECS4155-30P ensures reliable and efficient network operations while supporting the latest IPv6 management, security, and multicast control standards to accommodate the growth of IPv6 deployment.
Best price-performance 2.5G multi-Gigabit Ethernet access/aggregation switch with 25G uplinks
ECS4155-30P offers PoE++ up to 90 W per port with total power budget 750 W
High surge protection for ethernet ports (6KV) and AC power ports (4KV).
Low audible noise with smart-fan control design
ITU-T G.8032 ERPS L2 Ring protection with <50ms convergence time and a -5°C to 50°C operating temperature range position it as a robust solution for diverse environments.
Comprehensive and field-proven soſtware features for ISPs/carriers to provide broadband access, IPTV services
L2+/Lite L3 feature upgrades the L2 switch with routing functionality
Enhanced security, IPv6 and multicast features
Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
Complete Private MIB to fully control and monitor the switch via customer’s EMSment (CLI, SNMP, Web, ecCLOUD, TIP OLS)
Complete Private MIB to fully control and monitor the switch via customer’s EMS
