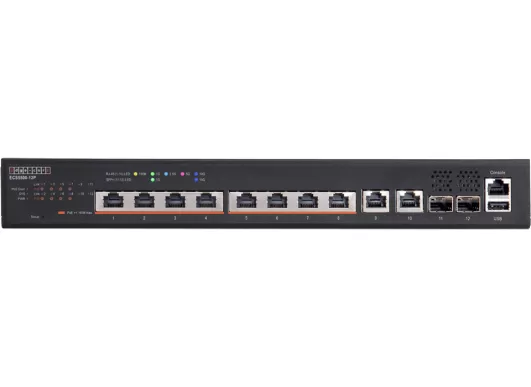

ECS5500-12P switch is a 10G Ethernet access switch with 8 x 10GBASE-T ports and 2 x 10G SFP+/2 x 10GBASE-T as uplink ports. The switch is ideal for SMB networks as a core switch.
The switch is ideal for SMB networks as a core switch. This switch is also positioned as cloud-edge access switch to connect IOTs and other devices in Enterprises and SMB deployments. It is also an ideal 10G access switch for SMB, enterprise, and campus networks, especially with its multi-Gig support for different 100M/1G/2.5G/5G/10G speed LAN devices. The ECS5500-12P is a PoE switch that can provide up to 60 watts (480 W budget) to power devices such as wireless access points (especially Wi-Fi 7), VoIP phones, surveillance cameras, IoT devices, and PoE-powered computers over Cat. 6a UTP cable, eliminating the need for individual power sources. The ECS5500-12P is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
High-performance 10G Layer 2+ / Lite L3 managed switch with 240 Gbps switching capacity
Supports 100M/1G/2.5G/5G/10G Ethernet for flexible deployment
PoE++ support with up to 60W per port and 480W total power budget for Wi-Fi 6/6E/7 APs
8 x 10GBASE-T ports and 2 x 10G SFP+/2 x 10GBASE-T uplink ports for flexible connectivity options (fiber or copper)
Dual hot-swappable power supplies with optional second AC or DC power module for redundancy
Continuous Availability – Supports MLAG, Rapid Spanning Tree Protocol (RSTP), MSTP, and Link Aggregation (LACP)
6KV surge protection for enhanced reliability in harsh environments
Enhanced Security – Port Security, 802.1X access control, DHCP Snooping, ACLs, SSH/SSL for secure management
Comprehensive QoS – Traffic prioritization using 802.1p, DSCP, WRR, and strict priority scheduling
Multicast Control – IGMPv1/v2/v3 Snooping, IGMP Filtering, Multicast VLAN Registration (MVR)
IPv6 Support – IPv6 management, DHCPv6 Snooping, IPv6 Source Guard
Simple Management – CLI, Web GUI, SNMPv1/v2/v3 with private MIB for easy configuration
