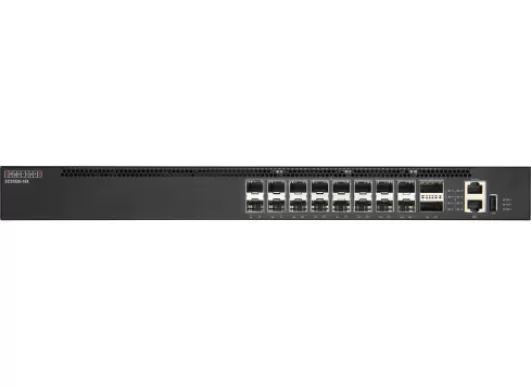

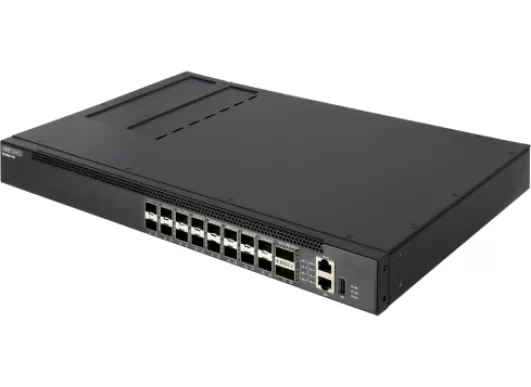

The ECS5520 series consists of two switches with sixteen 10GbE SFP+ ports or 10GBASE-T ports and two 40GbE uplink ports. The switches are designed for carrier/enterprise aggregation or small data center top-of-rack.
The Edgecore ECS5520 series comprises two high-performance switches, each equipped with sixteen 10GbE ports—available as either SFP+ or 10GBASE-T—and two 40GbE QSFP+ uplink ports. These switches are tailored for carrier and enterprise aggregation, as well as small data center top-of-rack deployments. They are particularly well-suited for traditional three-tier aggregation, core topologies, and folded-Clos architectures, operating with a 2:1 oversubscription ratio .
High-performance 10G Layer 2+ /Lite L3 managed switch with 480 Gbps switching capacity
Ideal solution for traditional three-tier aggregation or core topologies and folded-Clos architectures, serving with a 2:1 oversubscription
16 x 10G SFP+ + 2 x 40G QSFP+ uplinks
Full L2+ feature with static route
Dual hot swappable, load sharing power supplies to ensure the reliability of the switch
Optional 2nd AC power module for redundancy & DC power module
Continuous Availability – MLAG, ITU-T 8032 ERPSv2, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1D Spanning Tree Protocol (STP)
Comprehensive QoS – Traffic is prioritized according to 802.1p and DSCP, L2/L3/L4 ACL, Weighted Round Robin (WRR) and strict priority scheduling ensure differential prioritization of packet flows and avoid congestion of egress queues
Enhanced Security with Port security, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), DAI (Dynamic ARP Inspection); Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management
Robust Multicast Control with IGMPv1/v2/v3 Snooping, MVR
Simple Management with an industry-standard command-line interface (CLI), Web GUI, SNMPv1/v2/v3 with complete private MIB
IPv6 Management, DCHPv6 Snooping, IPv6 Source Guard
IPv4/ IPv6 static route
