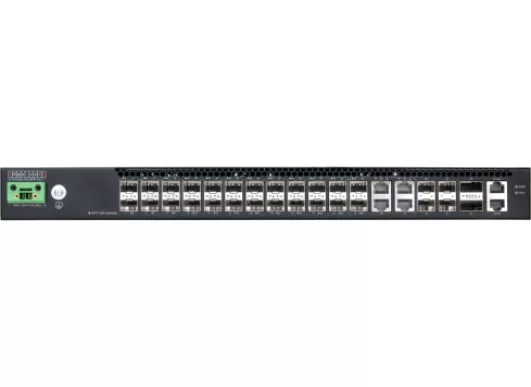

ECS4530 Series is a high-density Gigabit Ethernet fiber switch with four 10G uplinks. Using CSFP transceivers, ISPs and MSOs can double subscriber capacity per port while saving rack space and cooling costs compared to two 24-port or larger 48-port switches. It’s ideal for delivering FTTH triple-play services up to 1 Gbps and aggregating FE/GE access switches over Gigabit fiber uplinks. ECS4530 offers high availability, strong security, multicast control, advanced QoS, and full IPv6 support for future-ready networks.
Performance and Scalability with 256 Gbps switching capacity
High Density Gigabit Ethernet Fiber Compact 1U design
22 x CSFP + 2 CSFP/ 4 RJ45 Combo + 4 x 10G uplink + 2x 20G QSFP+, 1 Out of band management port, Front Access, depth only 22cm
Operating Temperature: 0°C to 60°C
Continuous Availability – MLAG, ITU-T 8032 ERPSv2, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w Rapid Spanning Tree Protocol, IEEE
802.1D Spanning Tree Protocol (STP)
Comprehensive QoS – Traffic is prioritized according to 802.1p and DSCP, ACL, Weighted Round Robin (WRR) and strict priority scheduling ensure differential
prioritization of packet flows and avoid congestion of egress queues
Enhanced Security with Port security, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs) (Dynamic ARP Inspection); Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management, DAI
Robust Multicast Control with IGMPv1/v2/v3 Snooping, MVR
Simple Management with an industry-standard command-line interface (CLI), Web GUI, SNMPv1/v2/v3 with complete private MIB
IPv6 Management, DCHPv6 Snooping, IPv6 Source Guard
IPv4/ IPv6 static route
