GPS420 - GPS, GLONASS, Galileo Splitter

GPS420 - GPS, GLONASS, Galileo Splitter

4 Way, TNC, 1000 - 2000 MHz, 50 Ohm, Passive

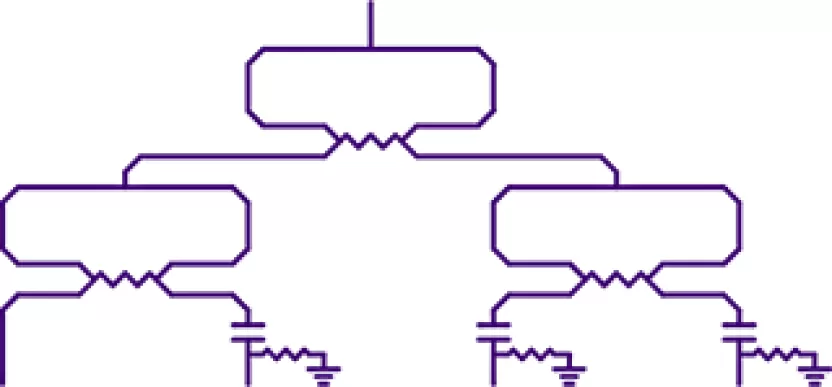

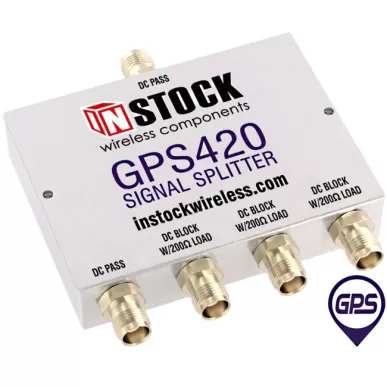

The GPS420 is a four way passive GPS signal splitter. It divides one GPS antenna signal among four different receivers. One receiver powers the active antenna while others remain blocked. Every port comes equipped with TNC female connectors for reliability. An internal feature includes 200 ohm loads for current drain. These loads help prevent receivers from reporting antenna faults. Some receivers mistake no current draw as a fault. The 200 ohm loads simulate antenna current and stop false alarms. The blocked ports support up to fifteen volts and seventy five milliamps. The pass port supports fifty volts and two thousand milliamps safely.
