ECS4530-54CSFP switch is a high port density Gigabit Ethernet fiber switch with four 10G uplink ports. Internet Service Providers (ISPs) and Multiple System Operators (MSOs) can support twice as many subscribers per port by inserting a CSFP transceiver with two bidirectional fiber ports into a CSFP port. At the same time, they can save money on space, heating, and cooling costs rather than installing two 24-port switches or larger 48-port switches. The switch is ideal for ISPs/MSOs that want to provide home users with FTTH triple-play services with up to a Gigabit of bandwidth. It is also ideal for ISPs and MSOs that want to combine Gigabit fiber uplinks and FE/GE access switches. The ECS4530-54CSFP switch is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. In keeping with the expansion of IPv6 deployment, the switch also provides support for the most cutting-edge IPv6 management, IPv6 security, and IPv6 multicast control.
Performance and Scalability with 256 Gbps switching capacity
High Density Gigabit Ethernet Fiber Compact 1U design

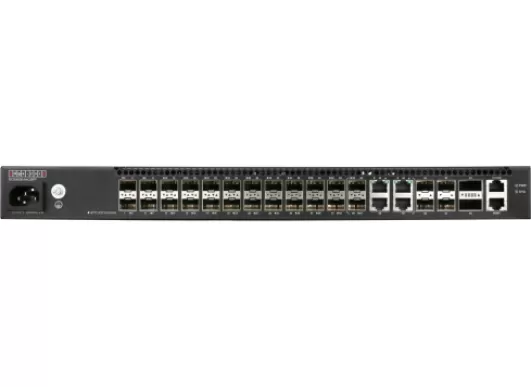

22 x CSFP + 2 CSFP/ 4 RJ45 Combo + 4 x 10G uplink + 2x 20G QSFP+, 1 Out of band management port, Front Access, depth only 22cm
Continuous Availability – MLAG, ITU-T 8032 ERPSv2, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1D Spanning Tree Protocol (STP)
Comprehensive QoS – Traffic is prioritized according to 802.1p and DSCP, ACL, Weighted Round Robin (WRR) and strict priority scheduling ensure differential prioritization of packet flows and avoid congestion of egress queues
Enhanced Security with Port security, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), DAI (Dynamic ARP Inspection); Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management
Robust Multicast Control with IGMPv1/v2/v3 Snooping, MVR
Simple Management with an industry-standard command-line interface (CLI), Web GUI, SNMPv1/v2/v3 with complete private MIB
IPv6 Management, DCHPv6 Snooping, IPv6 Source Guard
IPv4/ IPv6 static route
