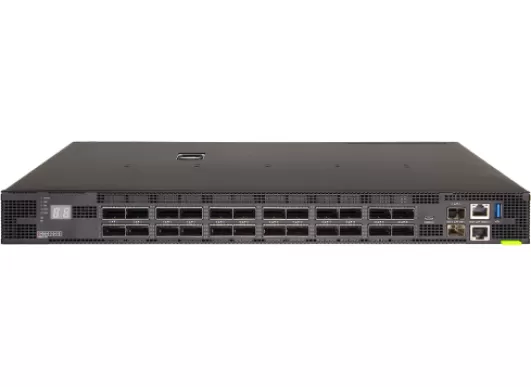

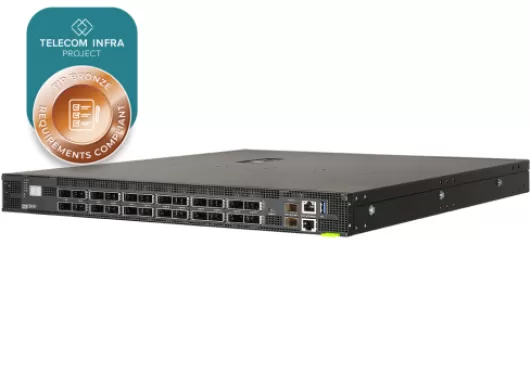

Interconnected with the COR550 (Jericho2 Leaf), the COR580 can be deployed in a spine-and-leaf architecture, supporting up to 24 COR550 leaf connections. This complete solution enables scalable, flexible core network infrastructures with 96 Tbps of total bandwidth for routing, packet processing, and efficient traffic management. The COR580 open network fabric switch comes with the Open Network Install Environment (ONIE), allowing installation of compatible Network Operating Systems, including Open Network Linux and commercial NOS options.
Cost-effective, flexible and scalable fabric switch for carrier core router applications
24 x QSFP-DD cell-based fabric ports
PAM4/50GE and NRZ/25GE configurations, allowing interconnections to J+/J2C devices q
Broadcom StrataDNX™ series Ramon silicon for high-scale capacity and traffic management
Self-routing with dynamic load balancing
Support for single-stage and three-stage fabric configurations
Supports fabric multicast and multicast load balancing
Support for three pipes with flexible allocation, e.g., TDM/OTN – unicast data – multicast data
High-performance Intel® Xeon® Broadwell-DE, 8 core CPU with integrated BMC (AS9926-24DB)
Hot-swappable, load-sharing, 1+1 redundant DC-DC/AC-DC PSUs
5+1 redundant, hot-swappable fan modules
