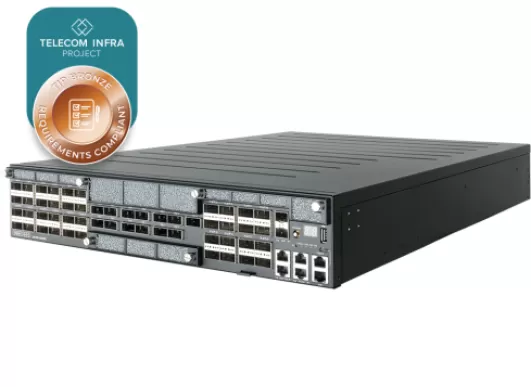

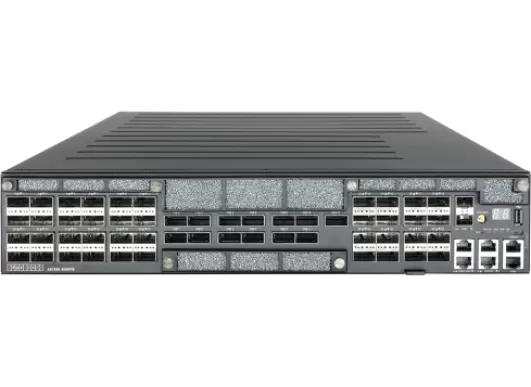

The COR580 (Ramon Spine), together with the COR550, can be deployed as a distributed chassis or in a spine-and-leaf architecture, enabling scalable and flexible network infrastructures with high-throughput bandwidth for routing, packet processing, and efficient traffic management. The COR550 open network switch comes with the Open Network Install Environment (ONIE), allowing installation of compatible Network Operating System (NOS) software, including the open-source Open Network Linux as well as commercial NOS options.
High-performance 100GbE core router for telecom and data center applications
Incorporates Broadcom StrataDNX™ Jericho2 silicon for non-blocking line-rate performance
High capacity external TCAM (BCM16K) for expandable table sizes and statistics
Consists of 40 x 100G QSFP28 and 13 x 400G QSFP-DD fabric interfaces
Front-to-back airflow SKU, carrier grade fan filter
Hot-swappable, load-sharing, and 1+1 redundant DC-DC/AC-DC PSUs
4+1 redundant, hot-swappable fan modules
Synchronous Ethernet, IEEE 1588v2 PTP, Timing synchronization stack interfaces
High operating temperature, up to 55° C
Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
