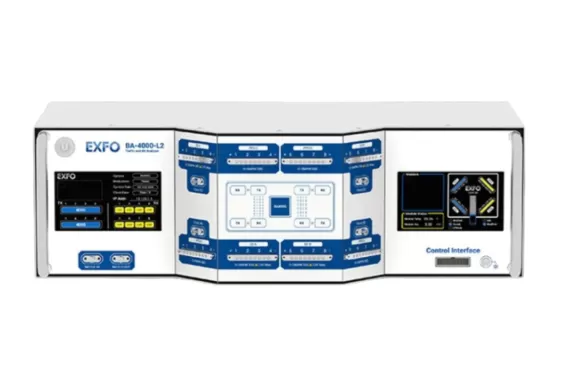

Combining Layer 1 BER testing and Layer 2 Ethernet traffic analysis for 800G transceivers, including DR4, FR4, LR4, DCO, and LPO types. The solution features FEC testing with detailed statistics, burst error detection, and end-to-end BER calculation—ensuring the industry's most accurate and reliable error measurement for optical transceiver validation, including LPO devices.
A comprehensive solution that delivers Layer 2 framed signals to validate segmented FEC (DCO) and 200G per-lane optical transceivers. Its advanced equalizer and channel simulator make it the perfect tool for LPO testing.

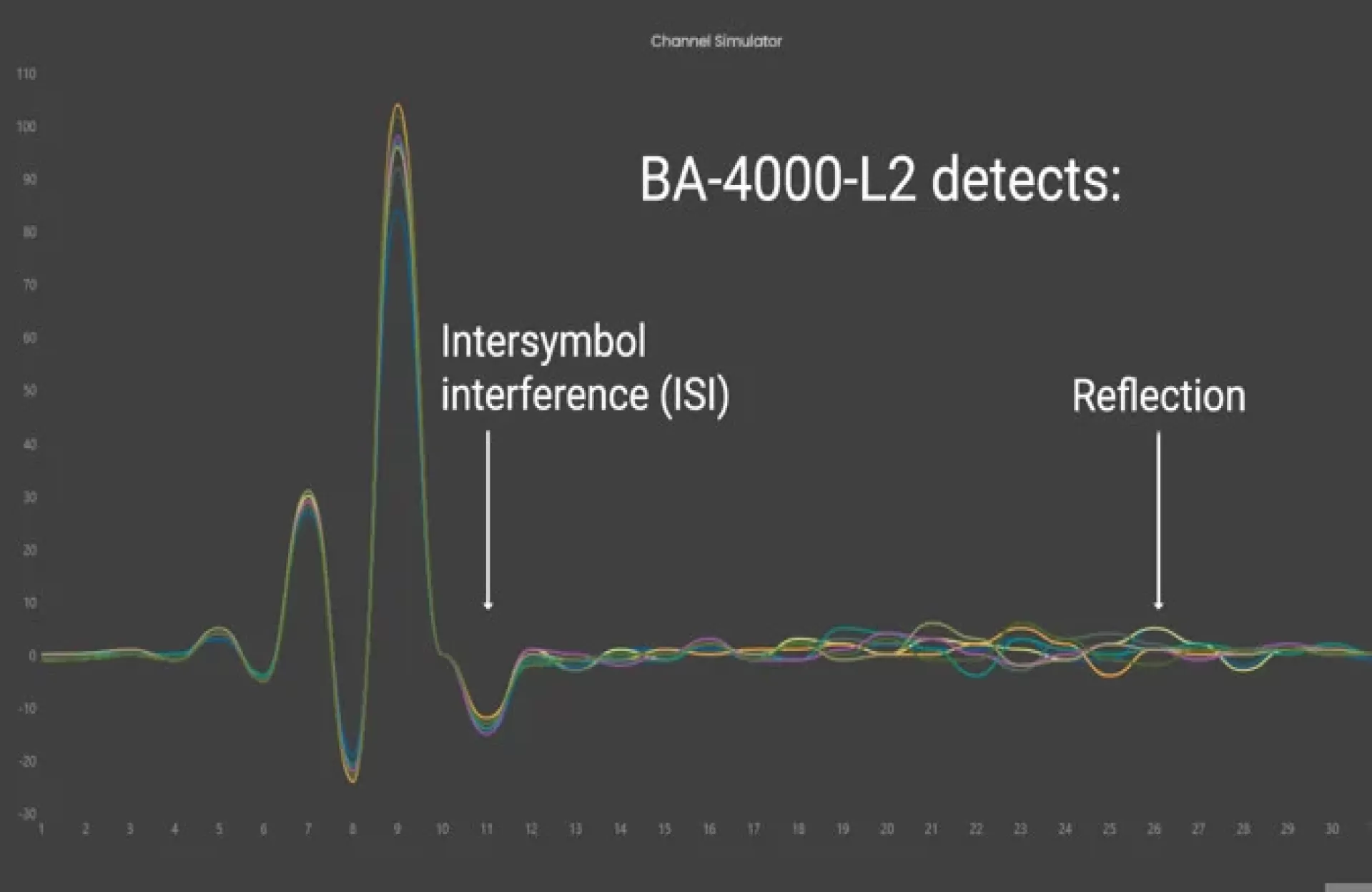

The powerful equalizer and channel simulator is ideal for testing LPO (Linear Pluggable Optics) transceivers. Unlike retimed optics, LPO transceivers do not include DSPs to precondition or equalize electrical signals. As a result, any degradation in signal integrity on the host side is directly transmitted to the optical side. With each signal handoff, the risk of bit errors increases. Traditional transceiver testing methods often fail to detect this type of signal degradation, making advanced testing techniques essential. The BA-4000-L2 addresses this need by detecting key performance indicators such as signal reflection, intersymbol interference (ISI), and FEC tail instability—factors that reveal the presence of bit errors.
Superior Hardware Design:Features a native electrical interface, excellent signal quality, clean eye diagram, and low error floor.
Layer 2 Framed Testing: Provides a real system-level view of the Layer 1 device under test (DUT) using framed Layer 2 traffic.
Layer 1 BERT: Offers excellent signal quality alongside Layer 2 testing for comprehensive validation.
Real-Time FEC Analysis:Enables testing of pre- and post-FEC BER, symbol error distribution, and FEC margin.
Advanced Equalizer and Channel Simulator: Includes CTLE, 32-tap FFE, and DFE—ideal for LPO transceiver testing.
Layer 2 Testing Capabilities:Supports 800G DR4, FR4, LR4, and ZR using framed Layer 2 traffic.
Link Training Support:Allows adjustment of TX and FFE weights to facilitate effective link training.
Burst Error Detection:Goes beyond average BER to detect and analyze burst error patterns.
Breakout Cable Testing: Compatible with various scenarios including 8×100G and 2×400G configurations.
Latency Measurement:Accurately measures transmission delay introduced by the DUT—critical for latency-sensitive applications.
Frame Loss Ratio Analysis:Evaluates real behavior of frame loss as defined by Ethernet Layer 2, a key system-level performance metric.
Hardware Option for LPO Testing:Includes specialized hardware optimized for LPO transceiver validation.
