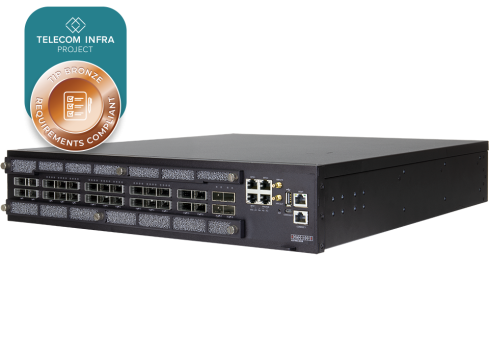

The AGR400 is a high-performance 100GbE aggregation router featuring a fixed interface configuration of 2 x 400G QSFP-DD (21.3 W), 2 x 400G QSFP-DD (16.5 W), 4 x 100G QSFP-DD (16.5 W), 18 x 100G QSFP28 (5 W), and 4 x 25G SFP28 (2 W). Its 2RU compact design allows deployment as either a disaggregated or standalone router.
It comes pre-loaded with the Open Network Install Environment (ONIE), enabling installation of compatible Network Operating Systems (NOS), including Open Network Linux (ONL) and various commercial NOS solutions.
High-performance 100GbE spine router for telecom and data center applications
Incorporates Broadcom StrataDNX™ Qumran2C silicon
Supports front-to-back airflow SKUs

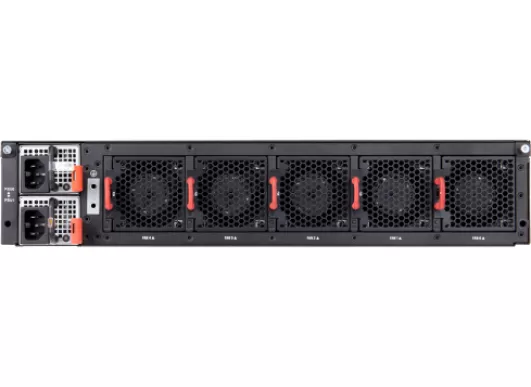

Hot-swappable, load-sharing, and 1+1 redundant DC-DC/AC-DC PSUs
4+1 redundant, hot-swappable fan modules
Support Synchronous Ethernet, and IEEE 1588v2 PTP
