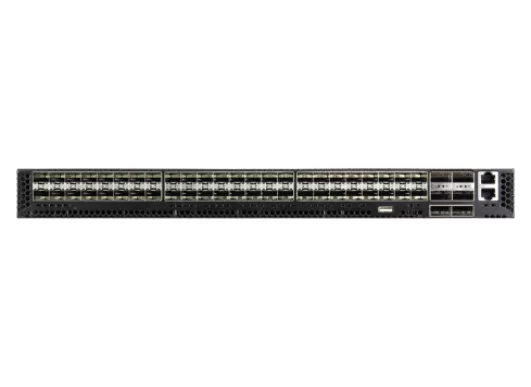

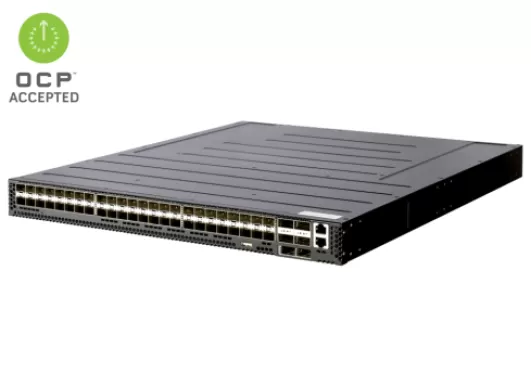

The AGR100 router delivers high performance, reliability, and scalable networking for cloud data centers and carrier access providers. It supports Layer 2 and Layer 3 switching across 48 × 10 GbE ports and 6 × 100 GbE uplinks. Flexible deployment options include top-of-rack, part of a 100 GbE or 40 GbE distributed spine, forming a non-blocking folded-Clos data center fabric, or as a carrier access/aggregation router. The AGR100 is fully rack-mountable in a standard 19-inch rack.
Designed for high availability, the AGR100 features redundant, hot-swappable AC or -48 VDC power supplies, 5+1 redundant fan modules, and configurable front-to-back or back-to-front airflow.
Cost-effective top-of-rack switch for data centers and carrier access/aggregation.
48 × SFP+ ports supporting 10 GbE (DAC, AOC, 10GBASE-SR/LR) or 1 GbE (1000BASE-T/SX/LX).
6 × 100 GbE QSFP28 uplink ports at the front.
Rack-mountable in standard 19″ racks.
Hot-swappable, load-sharing, redundant AC or -48 VDC power supplies.
Hot-swappable 5+1 redundant fan modules.
Management via Ethernet and console RJ-45 ports.
