The AGR110 is powered by Broadcom StrataDNX® Qumran MX™ switch silicon, delivering line-rate 800 Gbps Layer 2 and Layer 3 switching. It can be deployed as a top-of-rack data center switch or a carrier access/aggregation switch.
Designed for high availability, the AGR110 features redundant, hot-swappable AC or 48 VDC power supplies and 5+1 redundant fan modules with front-to-back airflow. It meets the performance, reliability, and scalability needs of cloud data centers and communication service providers.
High-performance switch for data center top-of-rack and carrier access/aggregation applications
48 × SFP+ ports supporting 10 GbE (DAC, AOC, 10GBASE-SR/LR) and 1 GbE (1000BASE-T/SX/LX)
6 × 100G QSFP28 front ports
Hardware support for IEEE1588v2 and SyncE
Rack-mountable in standard 19″ racks
Redundant, hot-swappable AC or 48 VDC power supplies with load-sharing

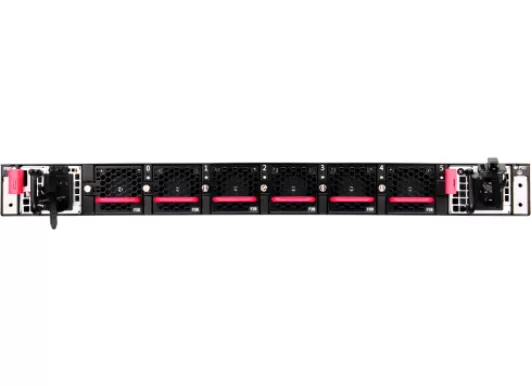

Hot-swappable 5+1 redundant fan modules
Management via Ethernet and console RJ-45 ports
Pre-loaded with ONIE for easy installation of open-source or commercial network OS
