The AGR120 is a deep-packet buffer router for carrier access, aggregation, and data center applications. Powered by Broadcom StrataDNX® Qumran MX™ ASIC and an Intel Xeon CPU, it delivers line-rate 800 Gbps Layer 2/3 performance with IEEE 802.1AE MACsec for secure 10G downlinks.
Designed for high availability, it features redundant hot-swappable AC or -48 VDC PSUs and 5+1 redundant fan modules with flexible airflow. The AGR120 ensures the performance, reliability, and scalability required by cloud data centers and service providers.
High-performance switch for data center top-of-rack, carrier access/aggregation, or edge routing
48 × SFP+ ports supporting 10 GbE (DAC, AOC, 10GBASE-SR/LR) and 1 GbE (1000BASE-T/SX/LX)

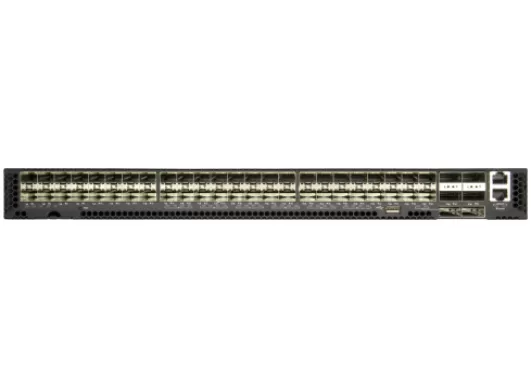

6 × 100G QSFP28 or 6 × 40G QSFP front ports
IEEE 802.1AE MACsec encryption support
Rack-mountable in standard 19″ racks

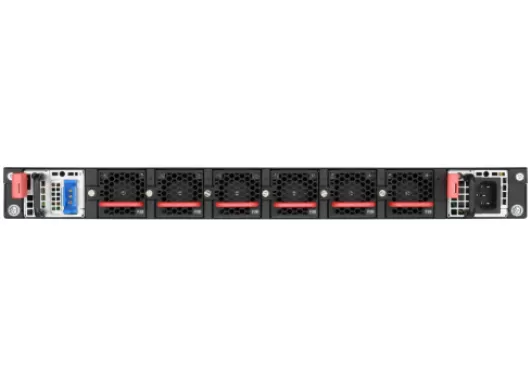

Redundant, hot-swappable AC or 48 VDC power supplies with load sharing
Hot-swappable 5+1 redundant fan modules
Management via Ethernet, console RJ-45, and USB storage ports
Pre-loaded with ONIE for automated installation of compatible open-source or commercial network OS
