The AGR130 is a Broadcom StrataDNX™ Qumran MX switch silicon-based router, delivering line-rate 800 Gbps for Layer 2 and Layer 3 switching. Featuring BCM15K TCAM, it can serve as a top-of-rack data center switch, carrier access/aggregation switch, or edge router.

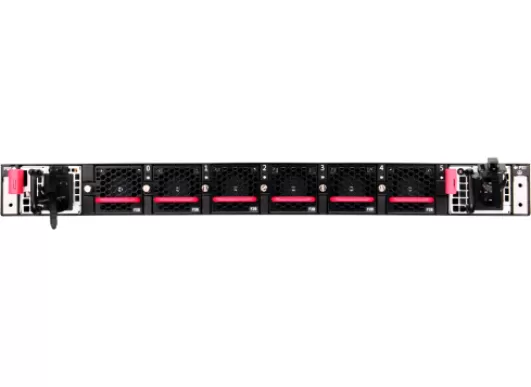

Designed for high availability, the AGR130 includes redundant hot-swappable AC or 48 VDC power supplies and 5+1 redundant front-to-back airflow fan modules. It meets the performance, reliability, and scalability needs of cloud data centers and communication service providers.

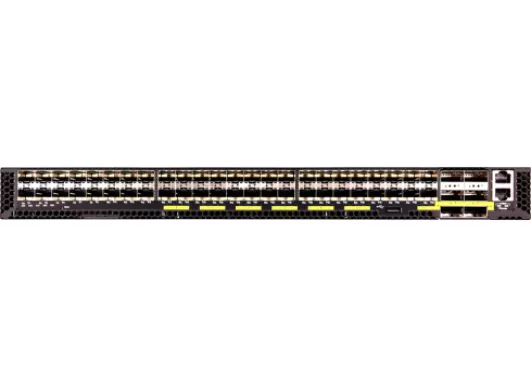

48 × SFP+ ports supporting 10 GbE (DAC, AOC, 10GBASE-SR/LR) and 1 GbE (1000BASE-T/SX/LX)
6 × 100G QSFP28 front ports
Hardware support for IEEE1588v2 and SyncE
Rack-mountable in standard 19″ racks
Redundant, hot-swappable AC or -48 VDC power supplies with load sharing
Hot-swappable 5+1 redundant fan modules
Management via Ethernet and console RJ-45 ports
Pre-loaded with ONIE for automated installation of open-source or commercial network OS
