The CSR200 is a compact, open cell site gateway platform offering a mix of 1GE and 10GE interfaces. Powered by merchant silicon and an x86 processor, it delivers optimized performance for mobile networks.
Designed for harsh environments, the CSR200 operates reliably across a wide temperature range (-40℃ to 70℃) and features built-in power boards and fans to ensure high availability for mission-critical applications.
It supports industry-leading hardware-based network timing and synchronization, making it ideal for LTE and next-generation 5G mobile backhaul solutions. Installed with ONIE (Open Network Install Environment), the CSR200 provides the flexibility to integrate your preferred NOS (Network Operating System) and user applications.
Comply with TIP (Telecom Infra Project) OOPT (Open Optical and Packet Transport) DCSG Specifications.

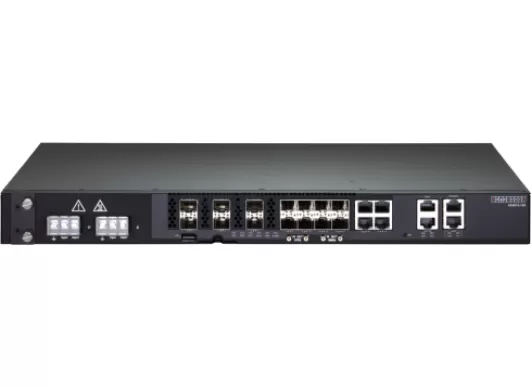

6 x 1G/10G SFP+, 8 x 1G SFP and 4 x 1G RJ-45 fixed ports.
Support IEEE1588v2 and SyncE functions in hardware.
Full line-rate Layer 2 or Layer 3 forwarding speed of 64 Gbps
Compact 1RU form factor. Temperature harden design with 240 mm in depth.
Supports side-to-side airflow SKU ( with Air Filter option).
Hot-swappable, load sharing, redundant AC/48VDC PSUs.
Built-in redundant fan modules.
Management: Ethernet and console RJ-45 ports
Hardware switch pre-loaded with Open Network Install Environment (ONIE).
Compatible with ADVA Ensemble Activator
