The Phoenix AMX3200 is a next-generation coherent transponder and muxponder delivering 3.2 Tbps full-duplex switching capacity, built as a disaggregated 1RU system with modular SLEDs and flexible NOS options, designed for scalable DCI and service-provider backhaul across C-band via CFP2-DCO.This version keeps a clean flow while capturing technical specifics and key functions.
100G/200G/300G/400G high capacity for 1000km/2000km long-haul transmission

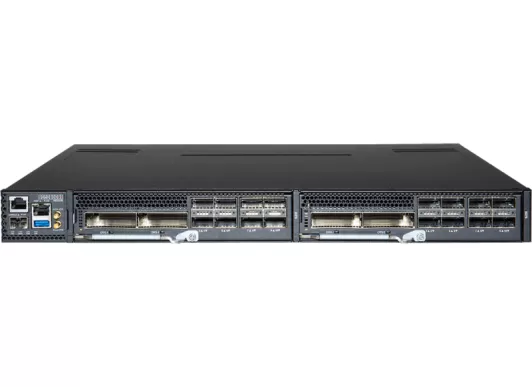

Dual front-panel modular sled design, each sled supports 8 x QSFP+/QSFP28 client interfaces and 2 x 400G (CFP2-DCO) line interfaces. AMX3200 is an upgrade with other types of interface sleds in the future, which enables smooth migration during capacity expansion.
Complies with OIF400ZR, OpenZR+, and OpenROADM industry standards
Supports 400G, 300G, 200G, and 100G optical line rates over modulation formats DP-16QAM, DP-8QAM, DP-QPSK, and dQPDK
4 × 100G/200/300/400G discrete, pluggable network ports up to 16 × 100 GbE/OTU4 (QSFP28)
Modular 1RU sled design
Maximum 1.6 Tbps capacity per sled
Supports in-band management
Supports DCI, metro networks
Supports gearbox, re-timer/crosspoint/2:1 hitless mux
