The AS5915-16X is a compact, open cell site gateway platform that delivers a mix of 1GE and 10GE interfaces. Built with merchant silicon and an x86 processor, it ensures optimized performance for mobile network applications.
Engineered for demanding environments, the AS5915-16X operates across a wide temperature range (-40℃ to 65℃) and features integrated power boards for high availability, making it ideal for mission-critical deployments.
With industry-leading hardware-based network timing and synchronization, the AS5915-16X is well-suited for LTE and emerging 5G mobile backhaul solutions.
This model features a passive cooling design with no internal fans. For proper thermal management, it should be deployed with front-to-back or back-to-front external airflow of at least 1 m/s across the device surface.

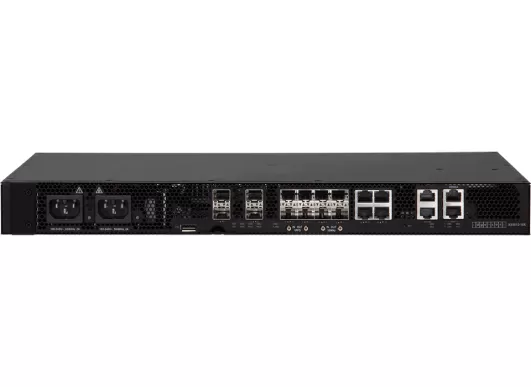

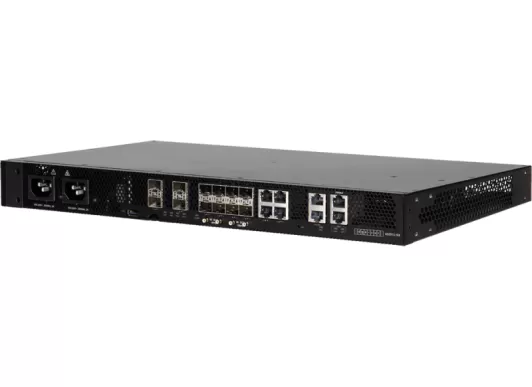

4 x 1G/10G SFP+, 8 x 1G SFP and 4 x 1G RJ-45 fixed ports.
Supports IEEE1588v2 and SyncE functions in hardware.
Full line-rate Layer 2 or Layer 3 forwarding speed of 32 Gbps
Compact 1RU form factor. Temperature-hardened design with 240 mm depth.
Fixed, load sharing, redundant AC/48VDC PSUs.
Passive cooling design, no internal fans.
Management: Ethernet and console RJ-45 ports
Hardware switch pre-loaded with Open Network Install Environment (ONIE).
Compatible with Open Network Linux (ONL).
