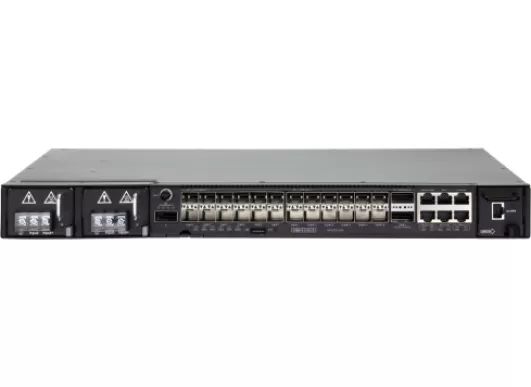

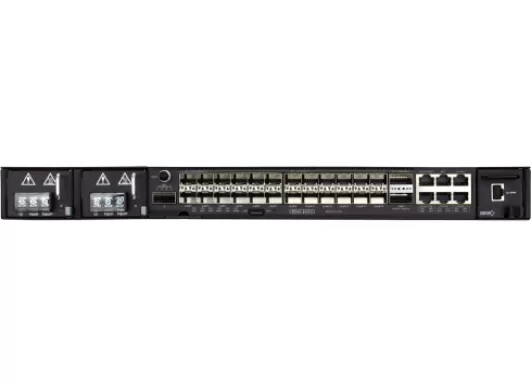

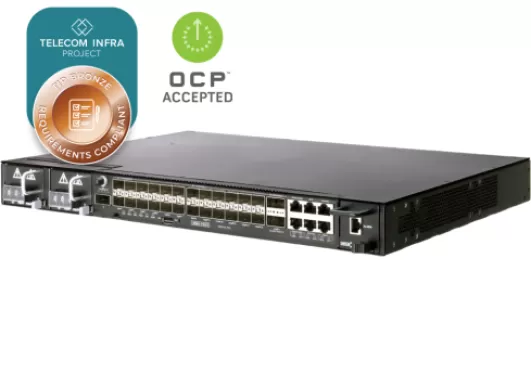

CSR310 is an open cell site gateway platform that is OCP Accepted and TIP DCSG Compliant. CSR310 features a combination of 1/10 Gbps, 25 Gbps, and 100 Gbps interfaces with optimized performance by utilizing merchant silicon, and standard x86 processor for access and aggregation networks. With temperature hardened design, the CSR310 is able to operate at wide operational temperature range from -40℃ to 65℃ and it equipped with load-sharing redundant/hot-swappable PSUs and fan modules that provides high availability and hassle-free maintenance. In particular, CSR310 supports stacking option for scalability, and redundancy in resilient network topology. The CSR310 builds in industry-leading network timing and synchronization functions that makes it an ideal solution for current LTE and emerging 5G mobile backhaul network. The CSR310 is installed with ONIE (Open Network Install Environment) that provides the freedom of choice for the preferred NOS (Network Operating System) integration.
Open cell site gateway platform for mobile backhaul networks.
20 x 1G/10G SFP+, 4 x 1G/10G/25G SFP28 and 3 x 100G QSFP28 fixed ports.
Full line-rate Layer 2 or Layer 3 forwarding of 300 Gbps.
High resilience in stacking configuration of two AS7315-27X units.
Support IEEE1588v2 and SyncE functions in hardware.
Rack mountable in standard 19″ racks.
Supports side-to-side airflow SKU.
All ports and PSUs are accessible on the front.
Hot-swappable, load sharing, redundant AC/48VDC PSUs.
Hot swappable redundant fan modules.
Management: Ethernet and console RJ-45 ports; USB storage port.
Hardware switch pre-loaded with Open Network Install Environment (ONIE).
Compatible with ADVA Ensemble Activator.
