DCS510 is spine switch for high-performance data centers. The switch provides line-rate L2 and L3 switching across the 32 x QSFP-DD ports, each supporting 1 x 400 GbE or 1 x 100 GbE, or via breakout cables 4 x 100 GbE or 4 x 25 GbE. The DCS510 can be deployed as a spine switch supporting 100/400 GbE spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options, plus commercial NOS offerings.

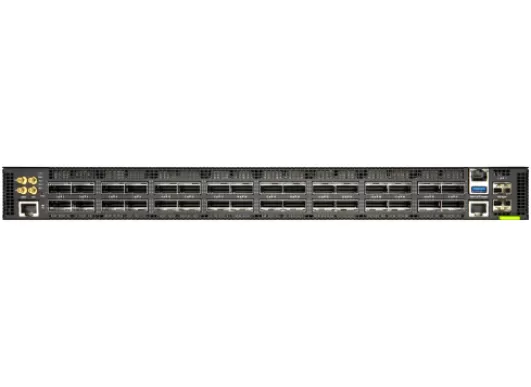

32 x QSFP-DD switch ports, each supporting 1 x 400 GbE or 1 x 100 GbE, or via breakout cables 4 x 100 GbE or 4 x 25 GbE.
Incorporates Broadcom Tomahawk 3 switch series silicon.
1 RU form factor.
Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.

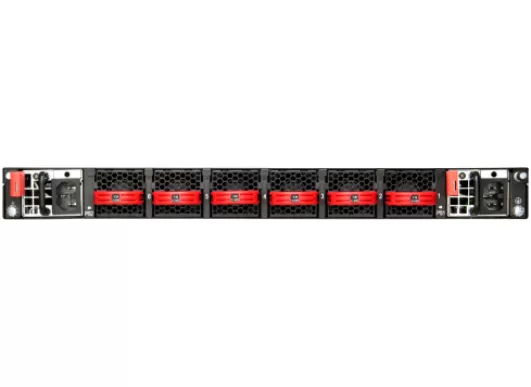

All ports on front; PSUs and fans accessible from rear.
Hot-swappable, load-sharing, redundant 1300W PSUs.
5+1 redundant, hot-swappable fan modules.
Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.
