The DCS202 is a next-generation data center switch engineered for performance, reliability, and scalability. It delivers line-rate Layer 2/Layer 3 switching across 48 × 10GbE ports and 6 × 100GbE uplinks, making it well-suited as a Top-of-Rack switch or as part of a 40/100GbE spine fabric in large-scale data center networks. Its standard 19-inch rack-mountable design ensures easy deployment.
Built for mission-critical environments, the switch offers redundant, hot-swappable AC or -48VDC power supplies, 4+1 fan redundancy, and flexible airflow configurations. Hardware-based support for VXLAN and NVGRE tunneling makes it ideal for virtualized cloud infrastructures.
Shipped with the Open Network Install Environment (ONIE), the DCS202 supports a broad ecosystem of open-source and commercial NOS options, providing operators the freedom to choose the best-fit software for their network.
48 x SFP+ switch ports, supporting 10GbE (DAC, 10GBASE-SR/LR) or 1GbE (1000BASE-T/SX/LX)
6 x 100 QSFP28 switch ports, each supporting 100GbE (DAC, 100GBASE SR4/LR4) or 4 x 25GbE (DAC or fiber breakout cable)
VXLAN and NVGRE tunneling support in hardware for network virtualization
Rack mountable in standard 19″ racks
Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.

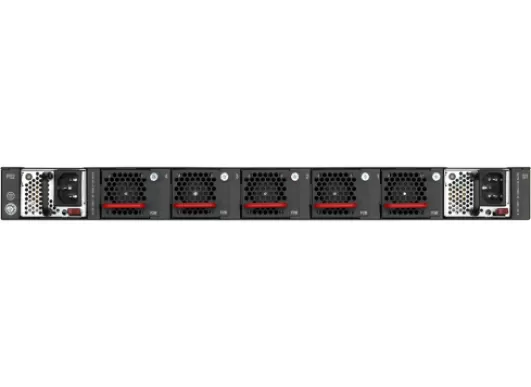

All ports on front; PSUs, fan modules on rear
Hot-swappable, load sharing, redundant AC or -48 VDC PSUs
Hot swappable 4+1 redundant fan modules
Management: Ethernet and console RJ-45 ports; USB storage port
Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings
