Genemini hand-held signal generator perfectly combines high-performance, high portability and controllability. With excellent engineering design, it has the volume and weight for single hand operation, the excellent RF performance and rich signal generation function are applicable to integration, R&D and manufacture in different communication fields. Based on the high-performance platform, it can meet most of the signal simulation requirements and provide customized signal services.
Frequency range：10MHz - 6GHz；
GeneMini is an Android hand-held signal generator. It features
Simple operation;
Support system integration, excellent performance, support
Secondary development and customize signal generation；

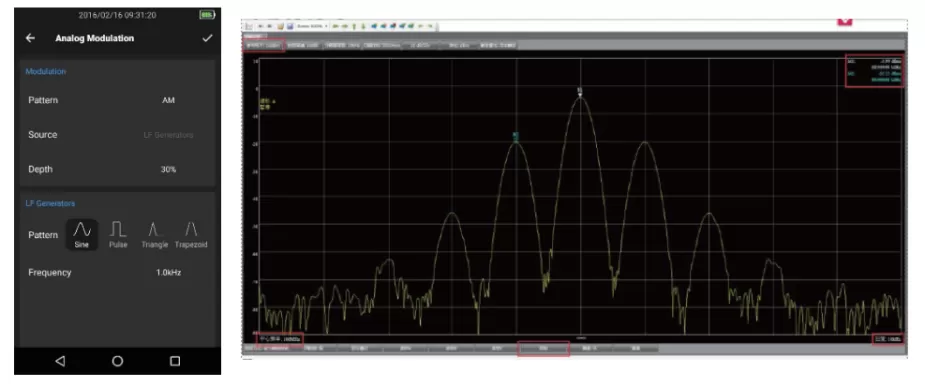

Analog modulation：AM、FM、PM；

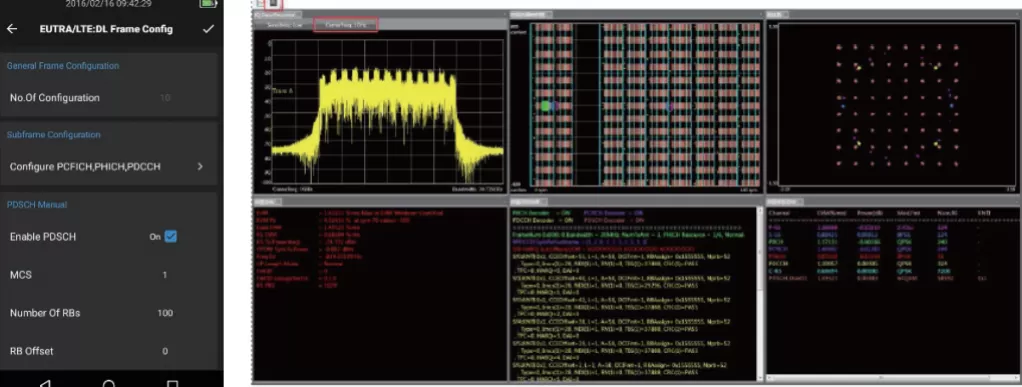

Support communication standard signal type：GSM/EDGE/TDSCDMA/WCDMA/TDD-LTE/FDD-LTE/NB-IoT/LoRa/5GNR；
Support digital modulation type：BPSK/QPSK/OQPSK/8PSK/16Q
AM/32QAM/64QAM/128QAM/256QAM/MSK/FSK； Modulation bandwidth：20MHz（can upgrade to 100MHz）；
Support pulse modulation；
High portability：Small size（197*93*61 mm），light weight (0.9kg);
