Every real-world network — whether it's a private WAN, a carrier backbone, or the public internet — is imperfect. Packets get delayed, dropped, duplicated, reordered, or corrupted, and available bandwidth constantly fluctuates.
What Is a Network Emulator, and Why Do You Need One Before Deployment?
A network emulator is a lab device that deliberately recreates these conditions on a controlled, isolated link, so you can see exactly how an application, device, or service behaves before it ever touches a live network.
Instead of hoping your VoIP platform, video streaming service, or enterprise application "just works" once it's out in the field, a network emulator lets you dial in specific real-world conditions — latency, jitter, packet loss, bandwidth restriction — and watch how your system responds. If it holds up in the lab under simulated WAN stress, you can deploy with confidence.
This is exactly the gap that WanRaptor™ and the PDS-1/10G are built to fill — they're two of the most widely used network latency emulators in test labs today, but they're designed for different jobs. Here's how to tell them apart and pick the right one.
WanRaptor™: The Rack-Mount Powerhouse for High-Speed Networks

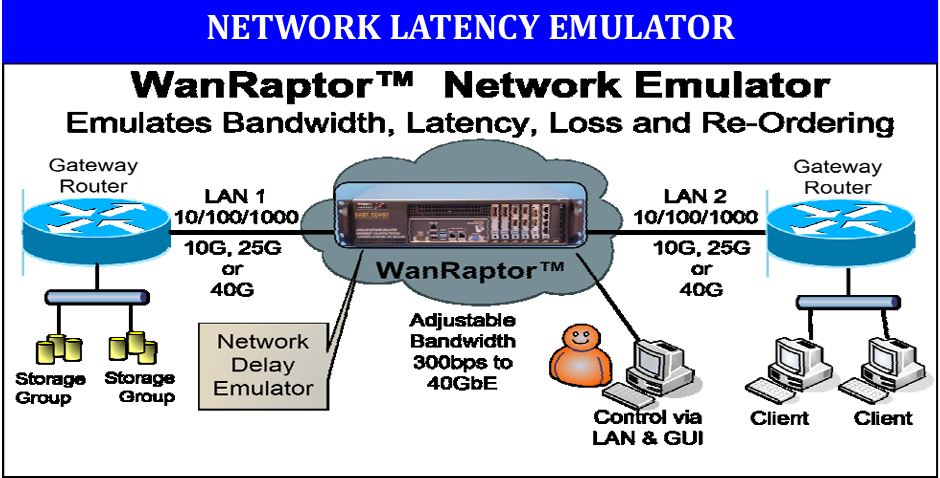

The WanRaptor™ is built for labs that need to emulate wide area network conditions across high-throughput, multi-port environments. It supports Ethernet speeds from 10/100/1000 all the way up to 10G, 25G, and 40G, making it a strong fit for data center, carrier, and enterprise-scale testing.
Where WanRaptor™ fits best:
- Testing critical network equipment at 10G/25G/40G line rates
- Emulating wide area network and satellite link delay
- Stress-testing network software under development
- Converting legacy serial networks to IP/VLAN-based emulation
- Running up to ten independent VLAN emulations on a single LAN, each with its own impairment profile
Key capabilities:
- Any-port-to-any-port emulation across copper or fiber interfaces
- Sub-50-microsecond precision on delay emulation
- Bridge or route operating modes
- GUI and REST API control for automated test workflows
- Available as a compact desktop unit or as a 1U/2U rack-mount chassis with multiple LAN interfaces
- Real-time traffic graphs, statistics, and detailed output reporting
Because it's built on an embedded hardware/software architecture, WanRaptor™ avoids the common industry problem of needing expensive hardware swaps or confusing bandwidth-license upgrades just to test a different media type — everything from 10/100/1000 up to 40G is handled within a single system.
PDS-1/10G: The Portable Emulator That Fits in a Laptop Bag
If WanRaptor™ is your lab's fixed-rack workhorse, the PDS-1/10G Portable Delay Simulator is its go-anywhere counterpart. Built on the same underlying emulation technology, it's compact enough to fit in a laptop case, yet capable of emulating network impairments up to 10GbE speeds.
Where the PDS-1/10G fits best:
- Trade shows and customer demonstrations
- On-site or bench testing during product development
- VoIP, video/IPTV, and website performance validation
- Quick network validation checks without a permanent rack setup
Key capabilities:
- Supports 10/100/1000 copper or fiber, plus optional 10G fiber interfaces
- Bandwidth control from 300bps up to 10G, in 1bps increments
- Delay range of 0ms to 10 seconds, adjustable in 1ms or decimal increments
- Packet loss, reordering, and bandwidth restriction support
- Desk, wall-mount, or 1U rack-mount installation options
- GUI-based configuration with no software installation required
- Real-time traffic graphs and a resettable packet statistics counter

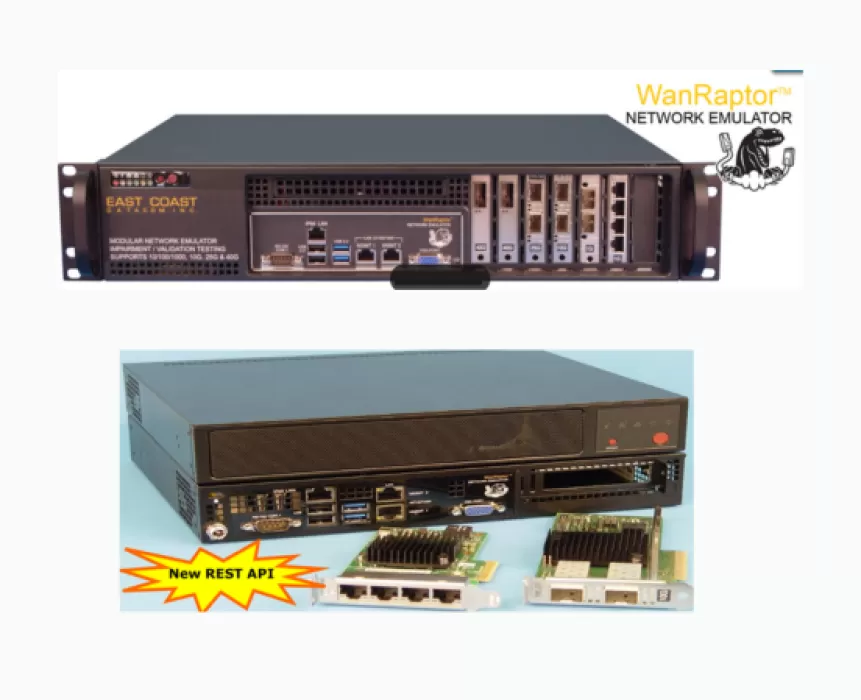

WanRaptor™ vs PDS-1/10G: Side-by-Side Comparison
| Feature | WanRaptor™ | PDS-1/10G |
|---|---|---|
| Best for | Fixed-rack, high-throughput lab testing | Portable, on-the-go testing and demos |
| Interface speeds | 10/100/1000, 10G, 25G, 40G | 10/100/1000, optional 10G |
| Form factor | Desktop, 1U/2U rack-mount, 6-slot PCIe chassis | Desktop/portable, wall-mount, or 1U rack option |
| Delay precision | Sub-50 microsecond | 1ms or decimal increments |
| Max delay | Up to 8 seconds | Up to 10 seconds |
| VLAN emulation | Up to 10 independent VLAN profiles | Not specified |
| Control | GUI or REST API | GUI |
| Operating modes | Bridge or route | Bridge or route |
| Ideal user | Data center / carrier / enterprise test labs | Field engineers, developers, demo teams |
In short: choose WanRaptor™ when you need multi-port, high-speed (up to 40G) emulation as a permanent lab fixture. Choose the PDS-1/10G when portability matters as much as performance — for demos, site visits, or lab bench work where a full rack isn't practical.
As a network emulator and WAN emulator supplier in India, Khushi Communications provides both WanRaptor™ and PDS-1/10G with local sales and support — making it easier for Indian test labs, telecom operators, and system integrators to validate their networks and applications before deployment.
Frequently Asked Questions
What's the difference between WanRaptor™ and PDS-1/10G?
WanRaptor™ is a rack-mount emulator built for high-speed (up to 40G) multi-port lab testing, while the PDS-1/10G is a portable unit (up to 10G) designed to fit in a laptop case for field testing and demos. Both share the same underlying emulation technology.
Can I test 40G networks with a portable emulator?
No — the PDS-1/10G supports up to 10G interfaces. For 25G or 40G emulation, WanRaptor™ is the right choice.
What network conditions can these emulators simulate?
Both products can emulate bandwidth restriction, latency, jitter, packet loss, and packet reordering to mimic real-world WAN behavior.
Do these emulators require software installation?
No — both use an embedded GUI configuration interface, so there's no separate software to install.
Can these emulators be automated for CI/CD test pipelines?
Yes — WanRaptor™ supports REST API control alongside its GUI, making it suitable for scripted or automated test workflows.
Looking to test your application or network equipment against real-world WAN conditions? Get a quote for WanRaptor™ or PDS-1/10G from Khushi Communications, India's trusted network emulator supplier.
