Optimize Mobile Backhaul with Accurate CD/PMD Testing

Mobile networks are growing fast. One area that is seeing the most growth is mobile backhaul. This part of the network connects base stations (like EnodeBs) to the metro or core network. These connections can be short or very long, sometimes up to 120 kilometers. At these distances, signal problems such as dispersion can occur. Dispersion makes it hard for the signal to stay clean and sharp. This is even more true when high data rates like 10 Gbit/s are used. That is why accurate dispersion testing is very important during new builds or upgrades.

What is Mobile Backhaul?

Mobile backhaul connects cell towers to the main network. These links carry a lot of data, including voice, video, and internet traffic. The quality of this connection affects the entire user experience. If there are problems in the backhaul, users may face slow speeds or dropped calls.

Mobile backhaul networks can be set up in different ways. Common architectures include:

Point-to-point
Ring
Star

Each has its own benefits, but all face the same issue: dispersion. When data travels over long fiber lines, dispersion causes the signal to spread out. This leads to errors in data transmission. That’s where proper testing tools become important.

Why Dispersion Testing is Needed

Two main types of dispersion can impact fiber networks:

Chromatic Dispersion (CD): Different light wavelengths travel at different speeds, which causes delay.
Polarization Mode Dispersion (PMD): Light travels in different polarization modes, and these may not stay aligned. This also leads to errors.

Both types affect how clearly and quickly data gets delivered. With faster speeds, like 10G or higher, the chance of problems increases.

FTB-5700: Simple and Efficient Testing

The FTB-5700 Single-Ended Dispersion Analyzer is a tool designed to solve this exact problem. CD and PMD Analyzer allows technicians to test for both CD and PMD from one end of the fiber. That means:

No need for a second technician
No second test unit required at the far end
Less equipment, less time, and lower cost

Single-ended testing reduces operational expenses (OPEX) while still delivering high-accuracy results. This makes the FTB-5700 ideal for mobile backhaul testing.

The Role of Distributed PMD Analysis

Some networks use older fiber. These older lines were sometimes not used for high-speed data because of poor performance due to PMD. For example:

A line with high PMD might only support 2.5G speeds.
Upgrading to 10G would seem impossible, until now.

The FTB-5600 Distributed PMD Analyzer changes that. It allows you to test PMD along the entire length of the fiber. This way, you can:

Identify which sections of the fiber cause the most PMD
Replace or fix only those sections
Use the rest of the fiber efficiently

This method saves money and makes old infrastructure useful again.

Advanced Tools: FTB-5500B and FTB-5800

For long-haul and ultra-fast networks (40G, 100G, and above), deeper testing is needed. That’s where the FTB-5500B PMD Analyzer and FTB-5800 CD Analyzer come in.

These tools offer:

Fast results
High accuracy
Reliable data under tough field conditions

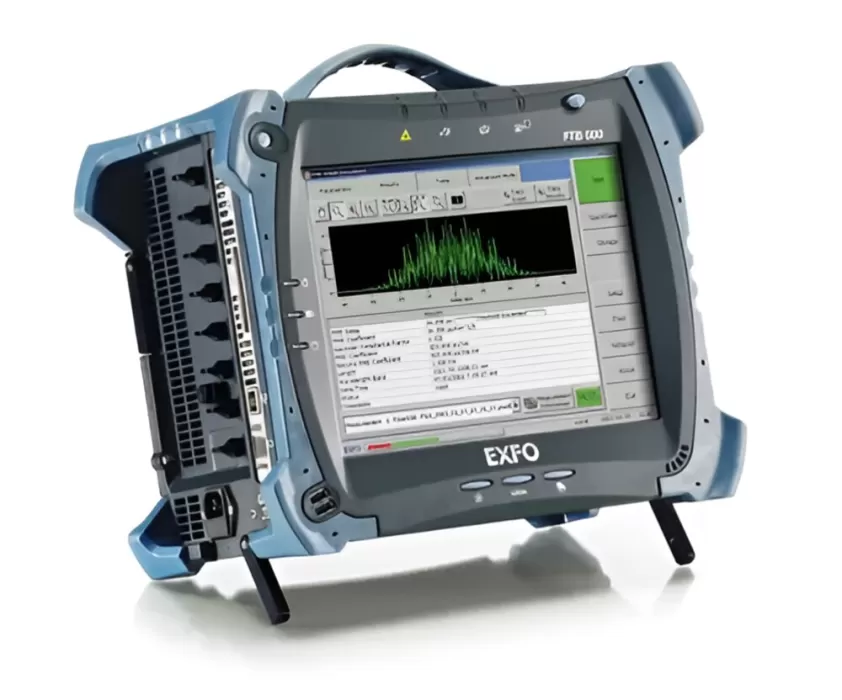

They are used together on the FTB-500 Platform, a rugged, portable unit. It’s built to handle drops, rain, and rough handling. Field techs can rely on it during installation, maintenance, and upgrades.

FTB-500 Platform: One Device, Many Functions

The FTB-500 Platform is more than just a box to hold tools. It gives you:

Eight slots for different test modules

Distributed PMD analysis

Full fiber characterization, including:

Chromatic Dispersion (CD)
Polarization Mode Dispersion (PMD)
OTDR and iOLM
Connector inspection

You can also run Fast Reporter 2 software on the same device. This helps analyze the test results and create reports while still in the field. This saves time and improves accuracy.

Key Benefits of Using EXFO Test Tools

Single-Ended Testing: Save time, reduce costs, and need fewer staff.
Accurate Results: Get precise data on both CD and PMD.
Distributed PMD Testing: Fix only what’s broken and keep using older fibers.
Modular Platform: Combine tools into one unit for easier field work.
Fast Reporting: Generate clear test reports on the spot.

Wrap Up

Mobile backhaul is growing quickly. High-speed data, long distances, and older fiber make dispersion a major challenge. Testing tools like the FTB-5700, FTB-5600, FTB-5500B, and FTB-5800 help solve these problems. When used on the FTB-500 Platform, they create a complete solution for fiber testing. With these tools, service providers can ensure high performance while keeping costs low. Proper dispersion testing is not just useful—it’s essential for the future of mobile networks.
