As AI data centers and next-generation high-density networks continue to evolve, 1.6T optical transceivers are becoming a critical part of modern infrastructure. However, validating these ultra-high-speed transceivers requires more than traditional Bit Error Ratio (BER) testing. Engineers now need deeper visibility into how Forward Error Correction (FEC) performs under real-world conditions.

This is where Block Error Ratio (BLER) monitoring plays a vital role. BLER monitoring provides a more accurate understanding of link performance, receiver margin, burst errors, and overall network stability, helping engineers validate 1.6T transceivers faster and with greater confidence.

What is BLER Monitoring?

Block Error Ratio (BLER) is a metric defined by the IEEE 802.3dj standard. It measures how many FEC codeword blocks contain errors rather than simply counting individual bit errors.

In high-speed transceiver testing, BLER monitoring allows engineers to observe how errors behave at the FEC block level. This is particularly important because a link may show an acceptable BER while still generating error patterns that place significant stress on the FEC system. For 1.6T transceivers, BLER monitoring offers a clearer view of receiver performance, FEC margin, burst error behavior, and overall link reliability.

Understanding a BLER "Block"

A block in BLER measurement corresponds to a single FEC codeword as defined by IEEE 802.3dj.

The standard supports two BLER calculation methods:

• PMA-based measurement using PRBS test patterns
• PCS-based measurement using actual FEC-encoded codewords

A block error is recorded when a codeword contains 16 or more symbol errors under KP4 FEC conditions. Monitoring these blocks helps engineers evaluate how effectively the FEC system is protecting the link.

Why Traditional BER Testing Is No Longer Enough

BER testing remains an essential part of transceiver validation. It measures the ratio of errored bits to the total number of transmitted bits and provides a good indication of overall link quality.

However, BER alone does not reveal how errors are distributed across the transmission. Two links may have the same BER, yet one may experience clustered or burst errors that are much harder for FEC to correct.

At 1.6T speeds, this distinction becomes increasingly important. A receiver can appear healthy based on BER results while operating dangerously close to its FEC correction limits. BLER monitoring fills this visibility gap by showing how errors are distributed across FEC codeword blocks and whether those errors are creating stress on the FEC engine.

Challenges of 1.6T Networks

As data rates increase, network links face greater challenges, including:

• PAM4 signal complexity
• Higher lane speeds
• Tighter operating margins
• Increased crosstalk
• Signal integrity degradation
• Burst error events

Although FEC can correct many transmission errors, its correction capability is finite. Once error levels exceed that threshold, link reliability can deteriorate rapidly.

BLER monitoring helps engineers determine whether FEC is comfortably correcting errors or operating close to failure. This insight is essential for ensuring reliable operation in AI clusters, hyperscale data centers, and high-performance networking environments.

Key Benefits of BLER Monitoring

BLER monitoring provides several advantages during 1.6T transceiver validation:

Real-Time FEC Visibility

Engineers can observe FEC behavior during testing rather than relying on post-test analysis.

Early Detection of Burst Errors

BLER monitoring quickly identifies burst error patterns that may not be obvious through BER measurements alone.

Improved Receiver Margin Analysis

It helps determine how close a receiver is operating to FEC correction limits.

Better Interoperability Testing

Different DSP implementations can behave differently under stress. BLER monitoring helps uncover interoperability issues before deployment.

Increased Deployment Confidence

Validation teams gain a more realistic understanding of system performance under actual operating conditions.

Reducing Test Time Without Sacrificing Accuracy

One of the biggest challenges in traditional transceiver testing is the time required to achieve statistical confidence in ultra-low BER measurements. In many cases, tests must run for hours to capture rare error events.

BLER monitoring accelerates this process by providing earlier visibility into FEC behavior and receiver margin. Instead of waiting for rare post-FEC bit errors, engineers can evaluate how errors affect FEC codeword blocks and determine whether the receiver is operating with sufficient margin.

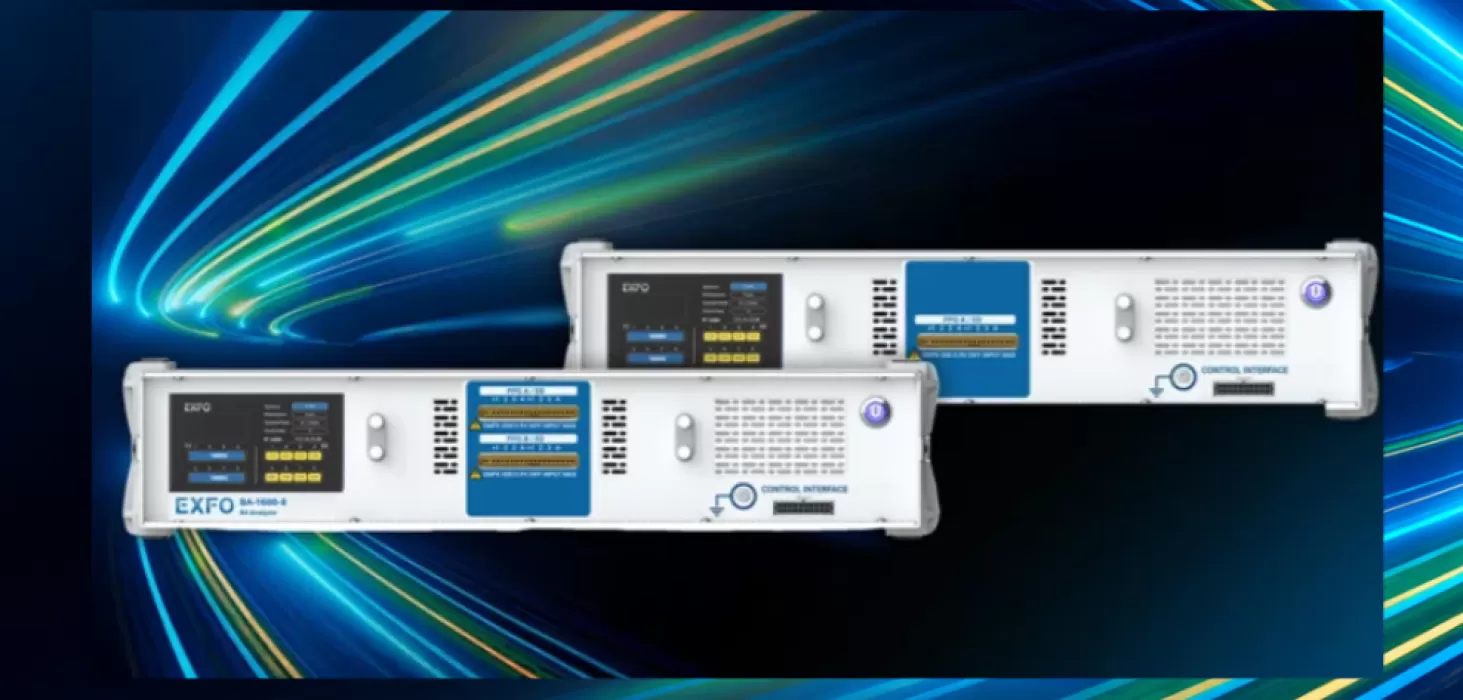

BA-1600 – 1.6T Bit Analyzer
